Industrial rip & crosscut circular saw blades 285.048.16M
TECHNICAL FEATURES OF CARBIDE TEETH:
Teeth height mm 8~10
ISO grade K10
Hardness (HV10) 1.765
Transverse rupture strength (N/mm2) 2.150
Pin hole COMBI3: 2/7/42 + 2/9.5/46.5 + 2/10/60.
Application
Application: for optimal quality rip and crosscuts.
Machines: table and special saws, portable machines.
Material: soft and hardwood, wood-based panels.

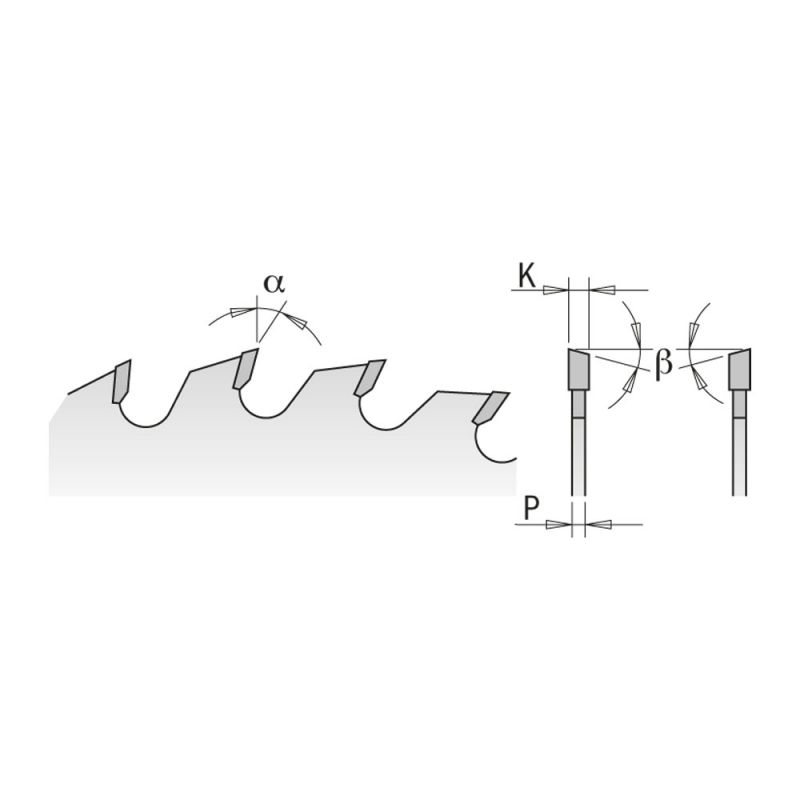

| Codice | D | B | FT | Z | K | P | α | β |
| 285.040.10H | 250 | 20 | COMBI3 | 40 | 3,2 | 2,2 | 15° | 10° ATB |
| 285.048.12M | 300 | 30 | COMBI3 | 48 | 3,2 | 2,2 | 15° | 10° ATB |
| 285.048.16M | 400 | 30 | COMBI3 | 48 | 3,5 | 2,5 | 20° | 10° ATB |
| 285.054.14M | 350 | 30 | COMBI3 | 54 | 3,5 | 2,5 | 15° | 10° ATB |
| 285.054.18M | 450 | 30 | 2/10/60 | 54 | 3,8 | 2,8 | 15° | 15° ATB |
| 285.060.10M | 250 | 30 | COMBI3 | 60 | 3,2 | 2,2 | 10° | 15° ATB |
| 285.060.11M | 260 | 30 | 2/10/60+2/7/42 | 60 | 2,8 | 1,8 | 10° | 15° ATB |
| 285.060.12M | 300 | 30 | COMBI3 | 60 | 3,2 | 2,2 | 15° | 10° ATB |
| 285.060.16M | 400 | 30 | COMBI3 | 60 | 3,5 | 2,5 | 10° | 15° ATB |
| 285.060.22M | 550 | 30 | 2/10/60 | 60 | 4,2 | 3,2 | 10° | 15° ATB |
| 285.066.24M | 600 | 30 | 2/10/60 | 66 | 4,2 | 3,2 | 10° | 15° ATB |
| 285.072.12M | 300 | 30 | COMBI3 | 72 | 3,2 | 2,2 | 10° | 15° ATB |
| 285.084.14M | 350 | 30 | COMBI3 | 84 | 3,5 | 2,5 | 10° | 15° ATB |
| 294.054.12M | 315 | 30 | COMBI3 | 54 | 3,2 | 2,2 | 15° | 10° ATB |
| 294.072.22M | 305 | 30 | COMBI3 | 72 | 3,2 | 2,2 | -5° | 15° ATB |
