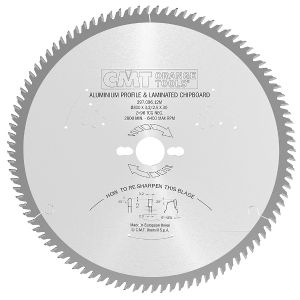

Industrial non-ferrous metal and laminated panel circular saw blades 296.190.64M
TECHNICAL DETAILS OF CARBIDE TEETH:
Teeth height 296 series mm 6
Teeth height 297 series mm 8
ISO grade K10
Hardness (HV10) 1.765
Transverse rupture strength (N/mm2) 2.150
Pin hole COMBI3: 2/7/42 + 2/9.5/46.5 + 2/10/60.
Application
Application: for cutting and dividing tubes, drawn products and solid blocks.
Machines: single or double mitre saws, radial saws. Recommended use with saw blades over the workpiece. Use series 296 for portable machines.
Material: aluminium, brass, copper alloys, plastic, composite material, melamine and laminated panels.
Warning: it is recommended to use a liquid lubricant. Wax stick for lubrication NOT RECOMMENDED.
| Order No. | D | B | FT | Z | K | P | α | β |
| 296.160.56H | 160 | 20 | 2/6/32 | 56 | 2,2 | 1,6 | -6° | TCG |
| 296.190.64FF | 190 | 20 (Festool® FF) | Key 5/7/2,5 | 64 | 2,8 | 2,2 | -6° | TCG |
| 296.190.64M | 190 | 30 | 2/7/42 | 64 | 2,8 | 2,2 | -6° | TCG |
| 296.225.64M | 225 | 30 | 2/7/42 | 64 | 2,8 | 2,2 | -6° | TCG |
| 297.064.09M | 216 | 30 | 2/7/42 | 64 | 2,8 | 2,2 | -6° | TCG |
| 297.080.11M | 260 | 30 | 2/10/60+2/7/42 | 80 | 2,8 | 2,2 | -6° | TCG |
| 297.096.12M | 300 | 30 | COMBI3 | 96 | 3,2 | 2,5 | -6° | TCG |
| 297.096.13M | 305 | 30 | 2/10/60+2/7/42 | 96 | 3,2 | 2,5 | -6° | TCG |
| 297.096.23M | 315 | 30 | 2/10/60+2/7/42 | 96 | 3,2 | 2,5 | -6° | TCG |
| 297.108.14M | 350 | 30 | COMBI3 | 108 | 3,2 | 2,5 | -6° | TCG |
| 297.120.16M | 400 | 30 | 2/10/60 | 120 | 3,8 | 3,2 | -6° | TCG |
